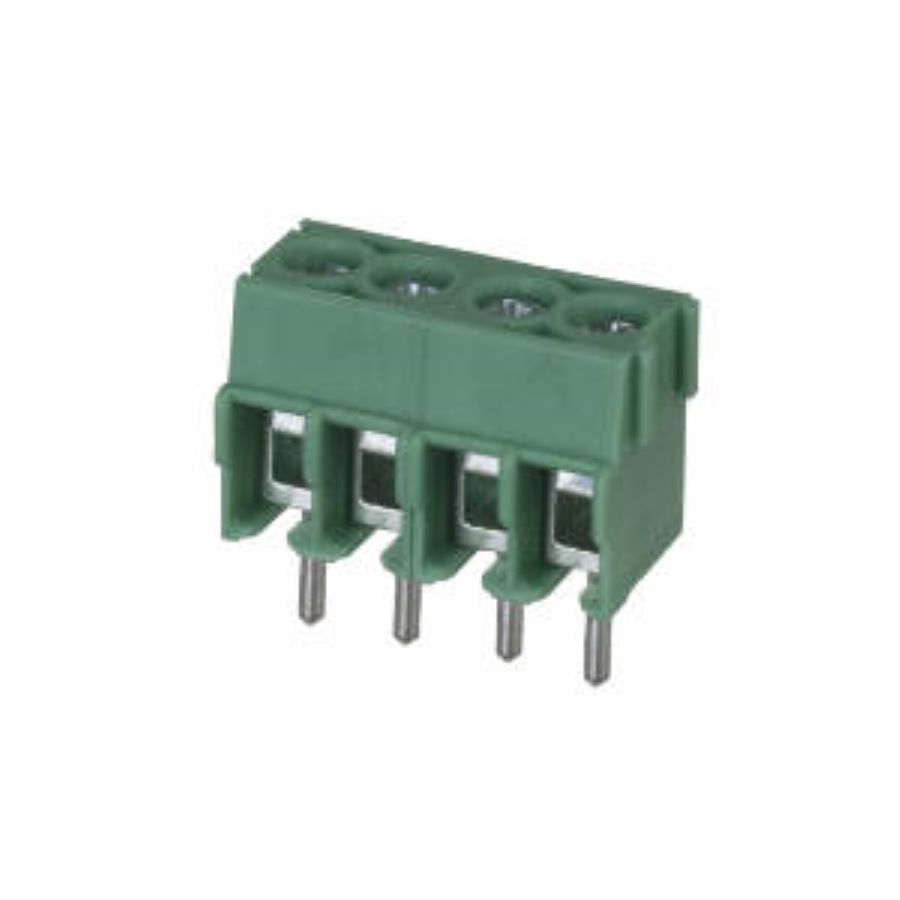

1984633
Manufacturer:
Phoenix Contact
Mfr.Part #:
1984633
Datasheet:
Description:
Terminal Blocks Through Hole 4 3.5 mm 17.5 A 200 V 26 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 7.6 mm |
| Width | 14 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 9 mm |
| Packaging | Bulk |
| Voltage Rating | 200 V |
| Depth | 7.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 1.869991 g |
| Contact Material(Contact Finish) | Tin |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 4 |
| Orientation | Straight |
| Max Supply Voltage | 160 V |
| Color | Green |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 26 AWG |
| Housing Color | Green |
| Test Voltage | 2.5 kV |
| Stripping Length | 5 mm |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 16 AWG |
| Current Rating (IEC) | 17.5 A |
| Voltage Rating (IEC) | 200 V |
Stock: 12704
Distributors
pcbx
pcbxUnit Price$0.98885
Ext.Price$0.98885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98885 | $0.98885 |
| 10 | $0.70891 | $7.08910 |
| 25 | $0.63470 | $15.86750 |
| 50 | $0.56938 | $28.46900 |
